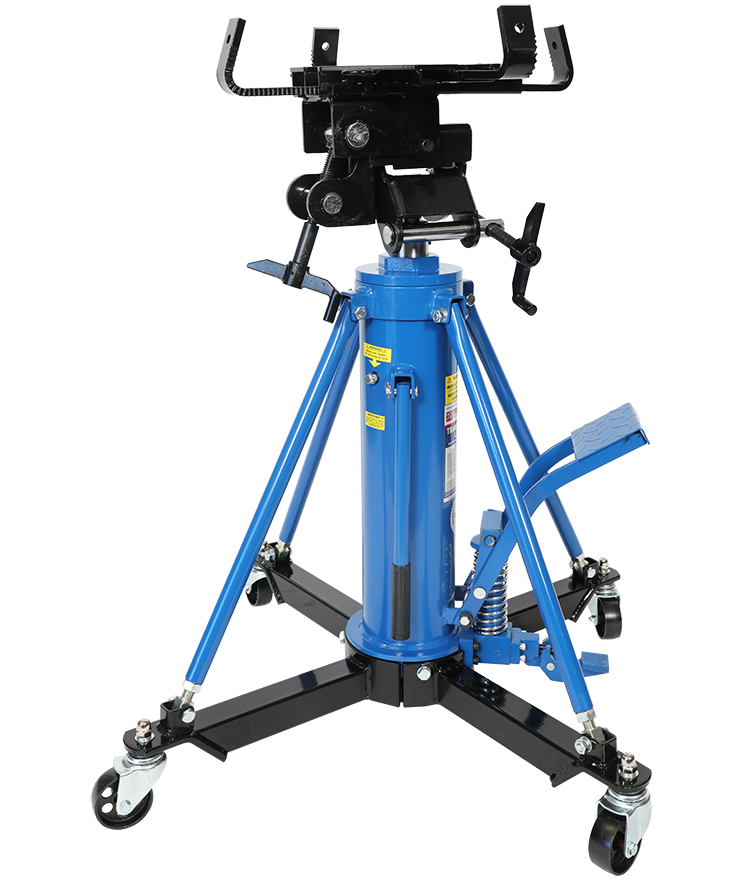

Transmission Lifter 4X4/SUV/Light Commercial

  • Product Code: 2063T
  • Brand: TradeQuip Professional

NEW PRODUCT!

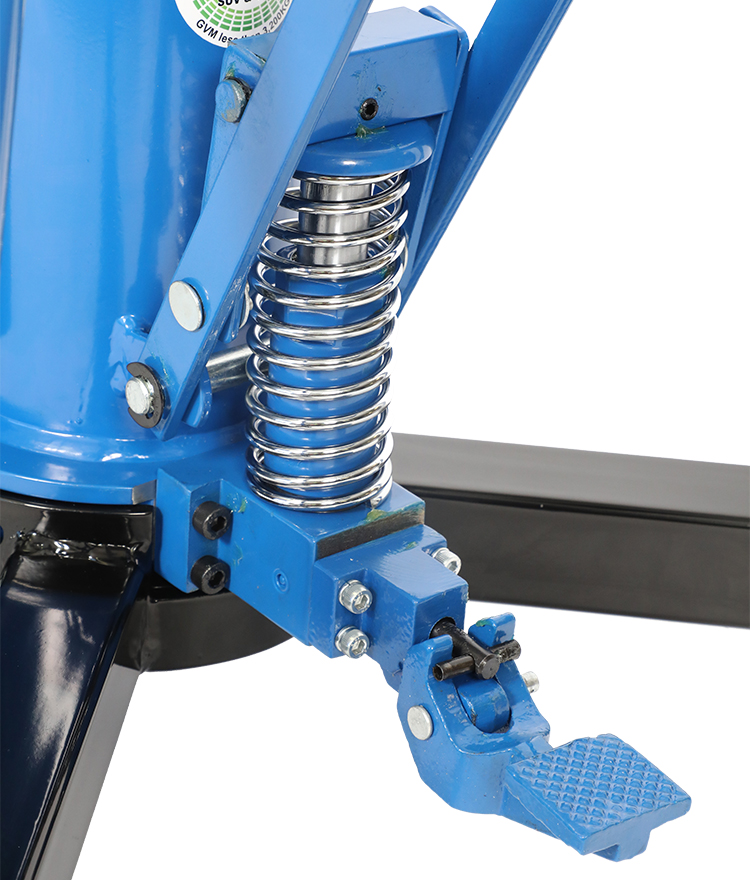

This TradeQuip "Made for the Trade"  1,000kg Transmission Lifter is designed for passenger car, 4WD & Light commercial transmission installation and removal. It features a universal mounting cradle that provides a 4 way tilt range and a manually operated hydraulic system with smooth hydraulic lift and descent. The hydraulic system also includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design offers safety and security when removing and installing large and heavy transmissions.

Features:

  • Designed for Passenger Car, 4WD & Light Commercial Transmissions
  • Base frame constructed of high-grade steel

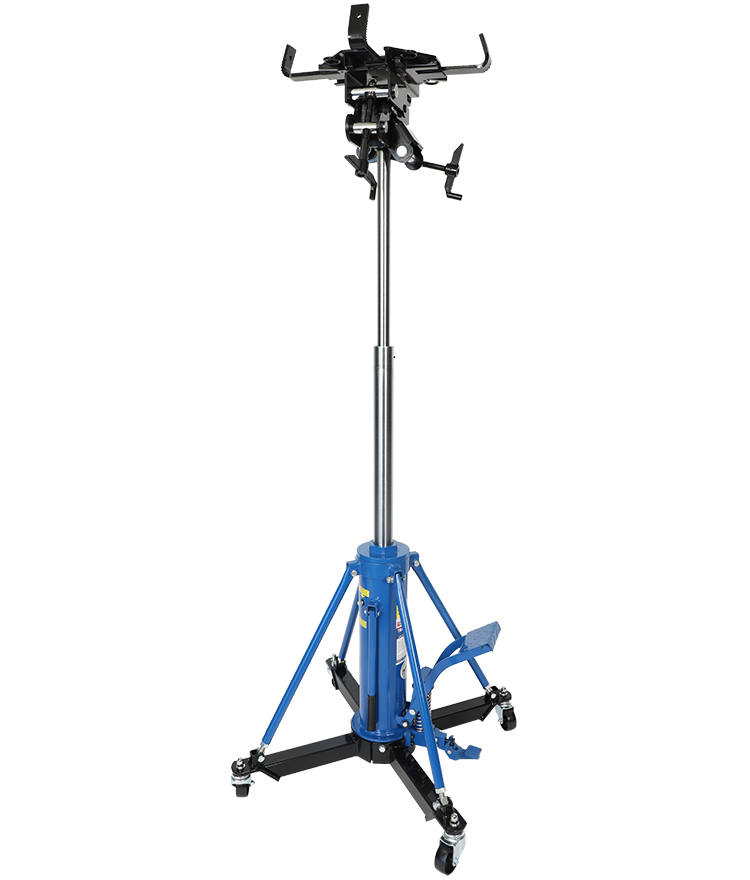

  • 2-Stage hydraulic lift
  • High quality large diameter hydraulic cylinder

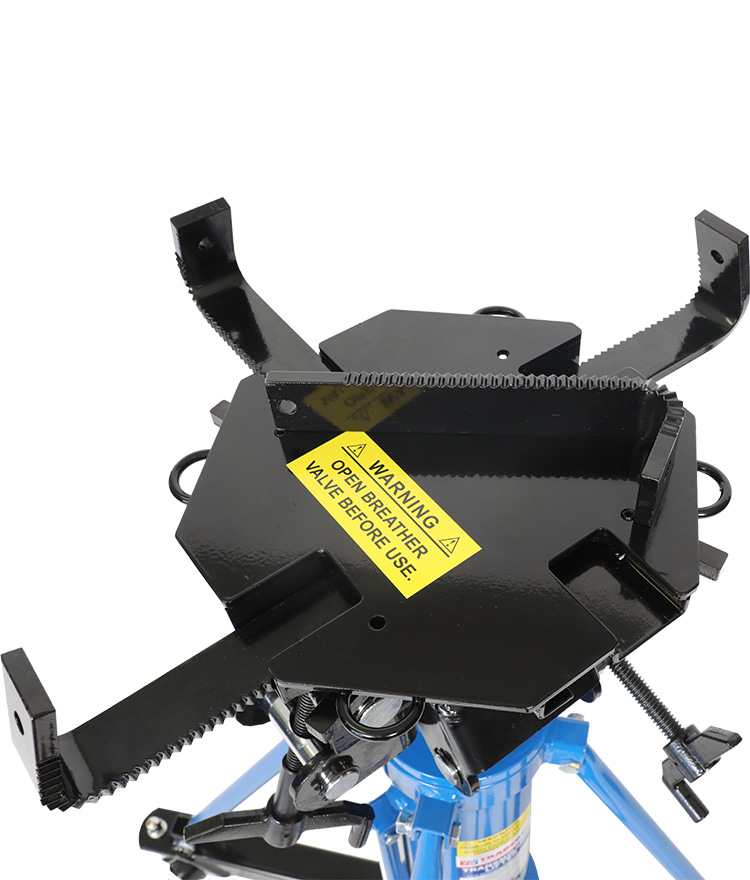

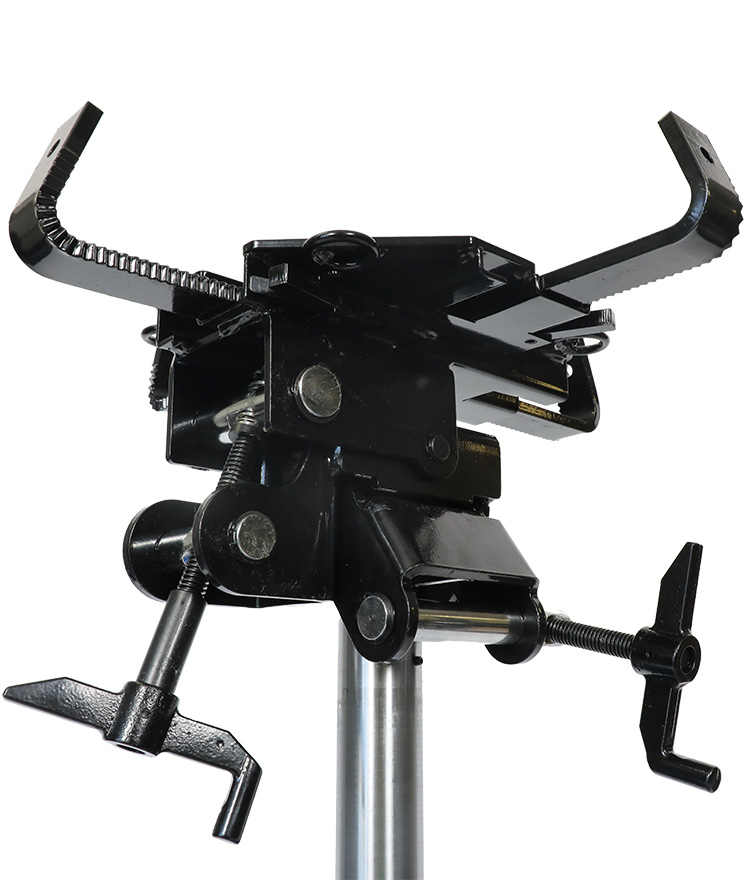

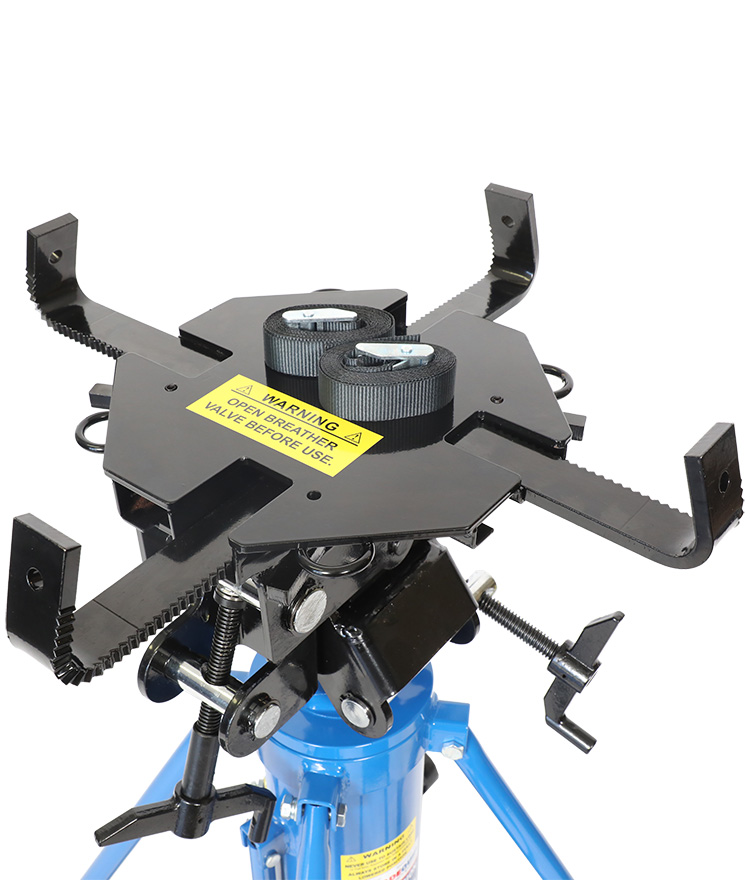

  • Universal 4 way tilt cradle with safety chains
  • Lead-free paint finish for a long-lasting finish
  • Paint finish is oil, grease and dirt-resistant for easy cleanup
  • Heavy-duty steel swivel castors




Specifications:

  • Safe Working Capacity: RWD/FWD/AWD/4X4 GVM <3,200KG
  • Rated Capacity: 1000kg
  • Working Height: 940-1920mm

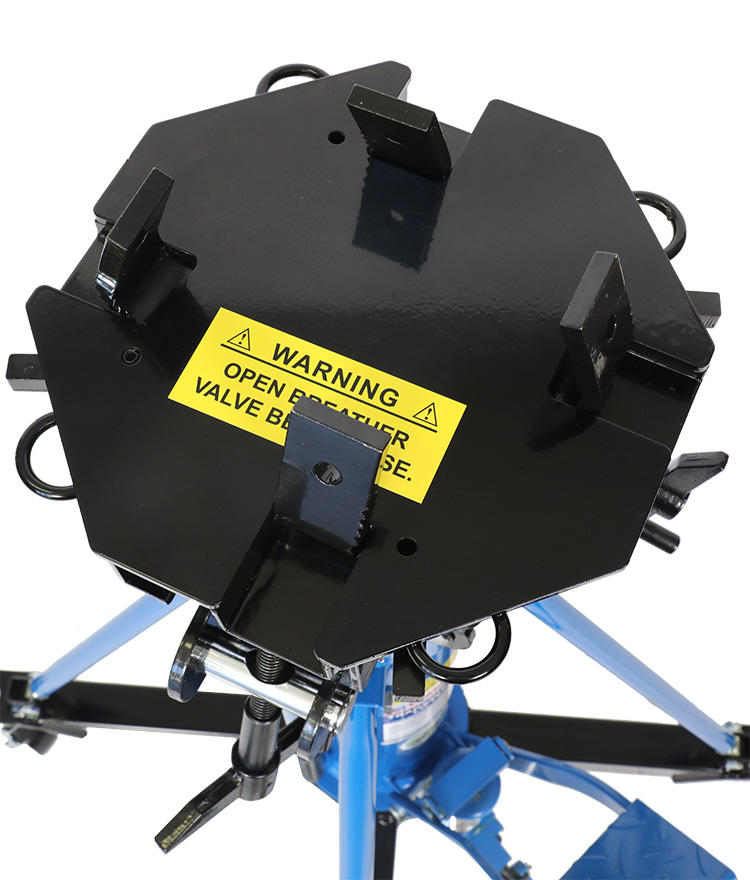

  • Lifting Platform Size: 280 x 280mm
  • Lifting Platform Bracket Ranges ID: 250 x 250mm to 410 x 410mm
  • Forward Tilt: 15˚
  • Rearward Tilt: 10˚
  • Side Tilt: 9˚
  • Side Tilt: 11˚
  • Gross Weight: 82.5kg

Intended Use

Designed for the removal, installation and transportation (in the lowered position) of passenger vehicle transmissions that are raised by an in-ground or above-ground lift.


Print version           Owners Manual           Bleed Instructions          Lubrication Guide           Product Information Tips          Setup Guide Leg Levelling






About the TradeQuip brand

The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment by professional users. With proven and trusted “Made for the Trade” reliability, 'TradeQuip'  branded products offer the very best in performance for an affordable price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
