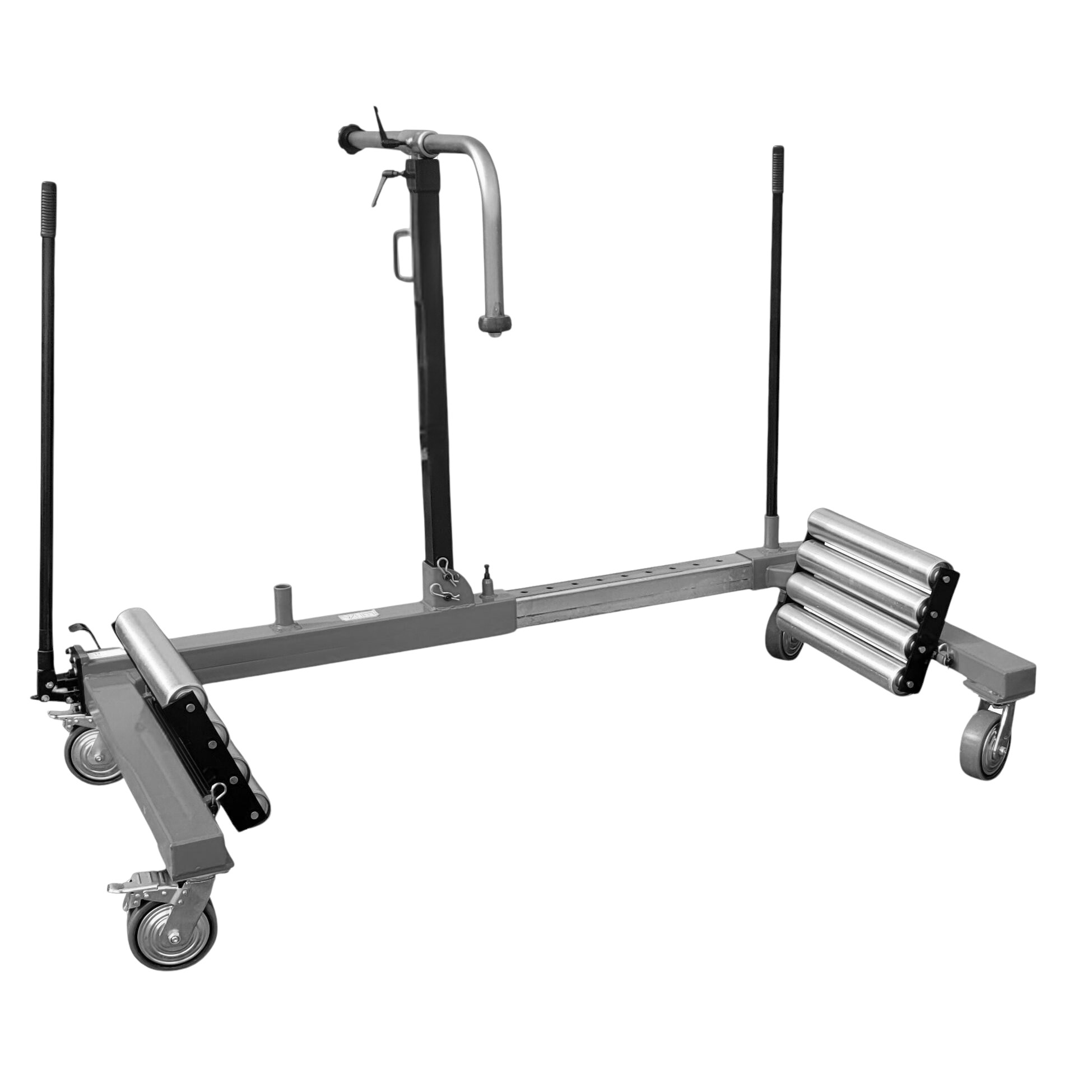

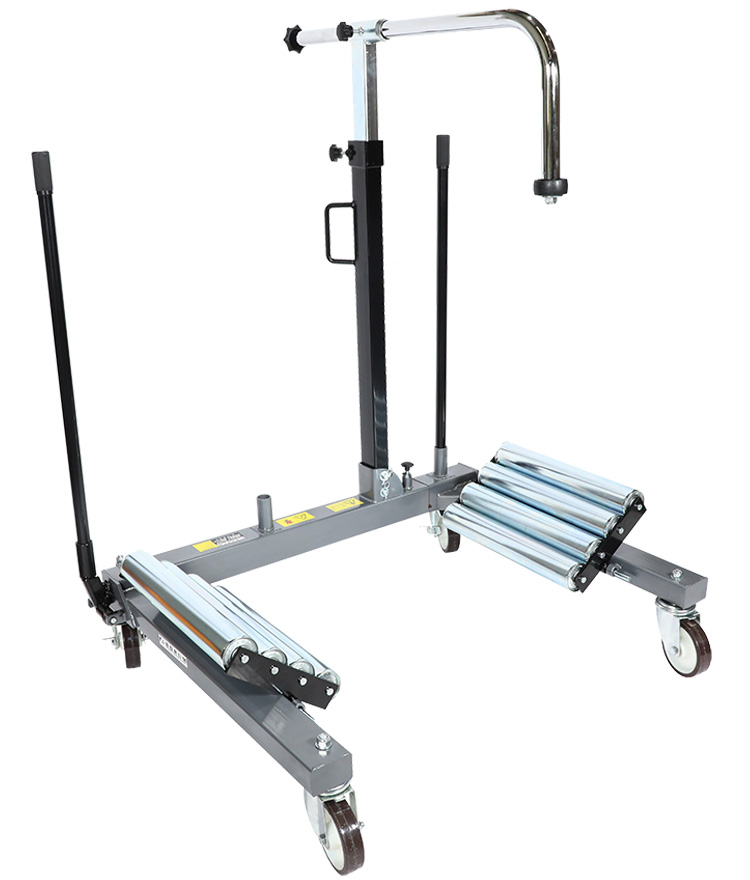

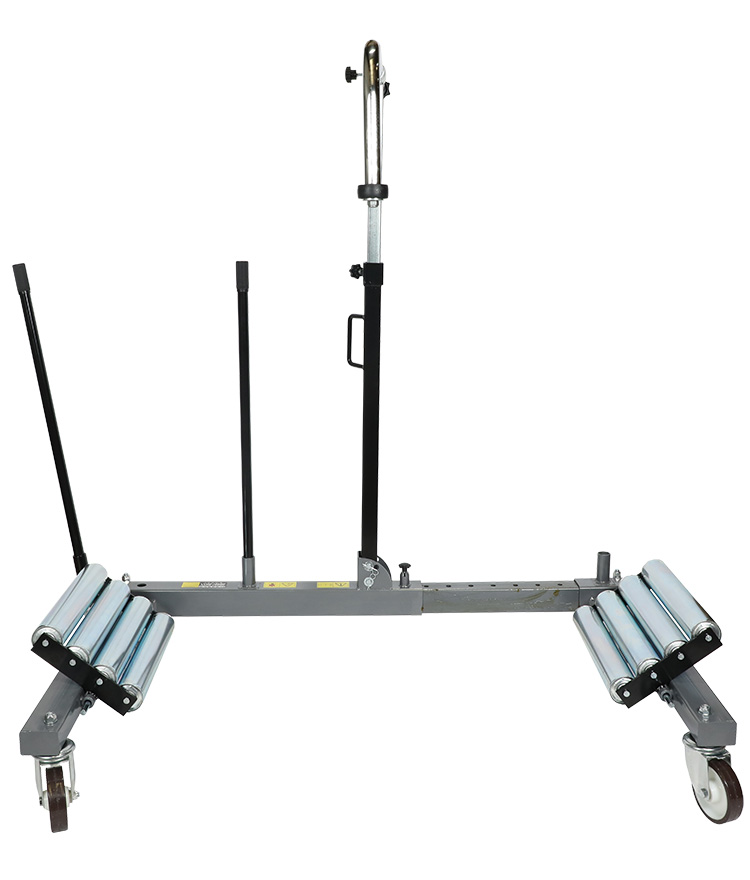

Heavy Duty Wheel Dolly Lifter 1200kg

Product Code: BR05-0090
Brand: Borum Industrial

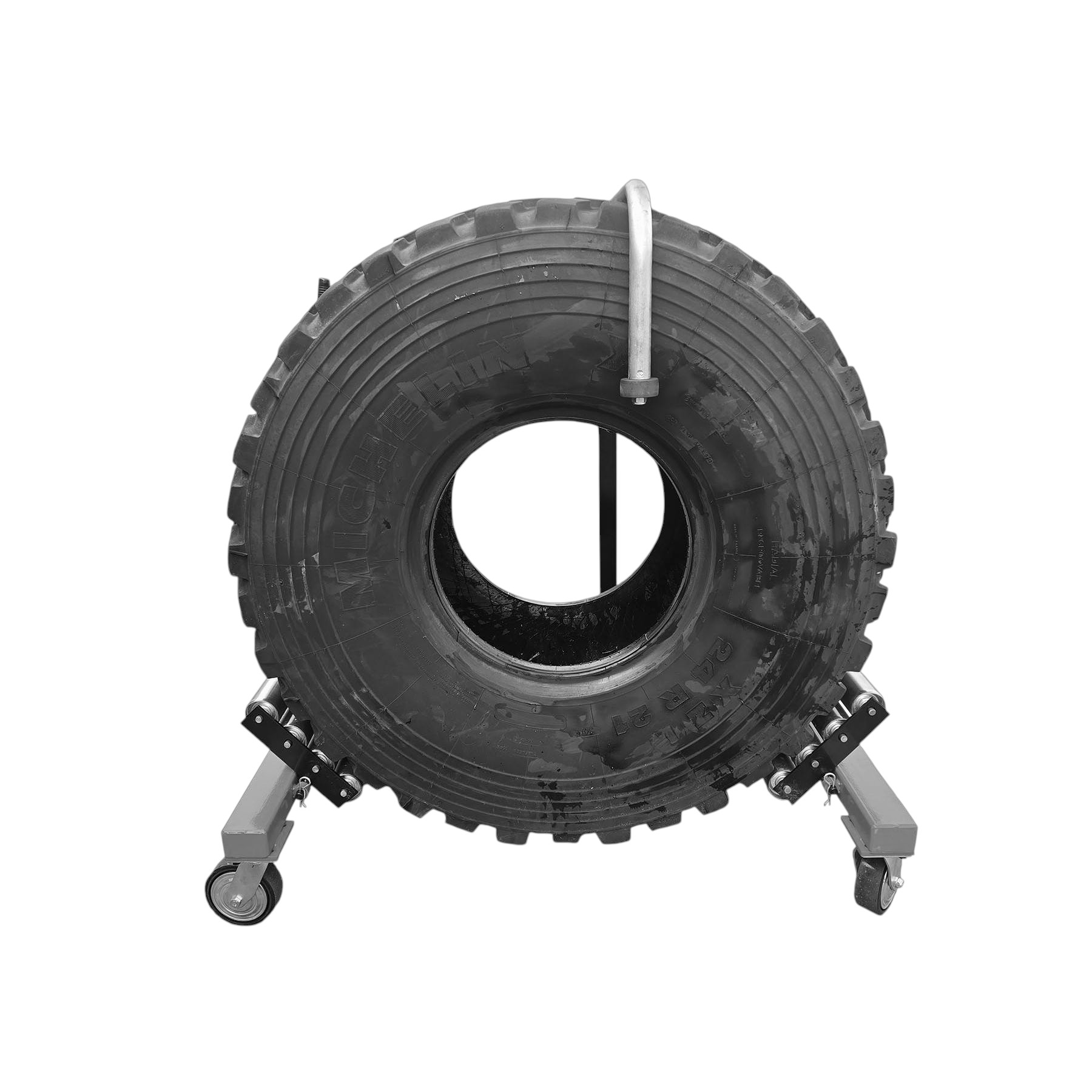

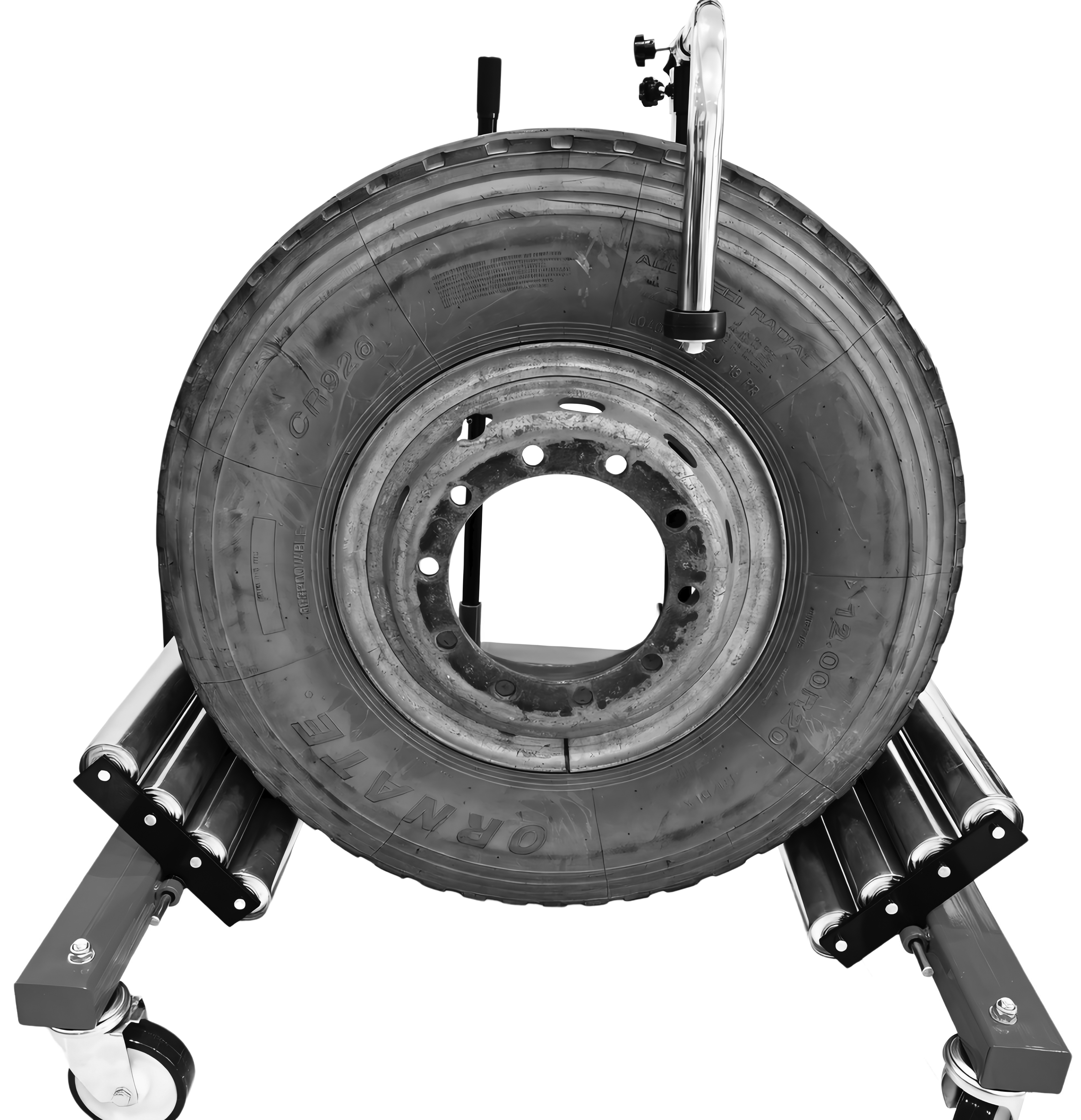

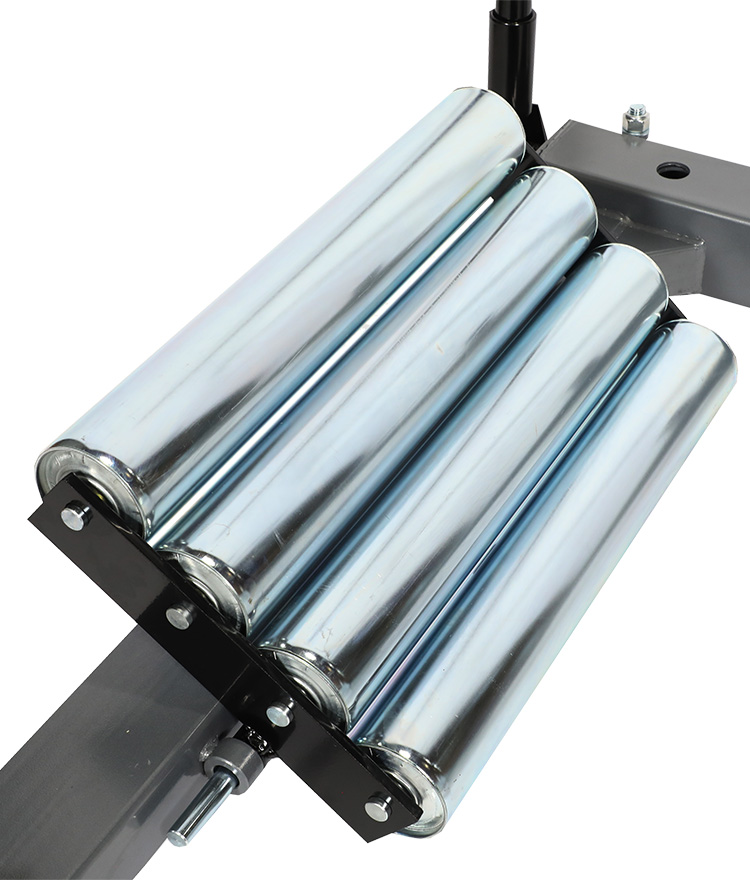

This Borum Industrial Hydraulic 1200kg Heavy Duty Wheel Dolly Lifter is designed for the removal, installation and transportation of large truck, earthmoving, tractor and agricultural commercial tyre and wheel combinations. Hydraulically activated lift arms handle wheel assemblies from 1000mm up to 2000mm in wheel diameter. Four ball bearing mounted castor wheels provide positive stability and easy manoeuvrability. Quadruple bearing mounted lift rollers easily rotate vehicle rim & tyre for bolt pattern alignment while the integrated tyre clamp support arm keeps the wheel secured in place.

Features

Hydraulic system actuated to provide smooth, positive power for the removal and installation of large commercial wheel & tyre combinations
Heavy duty steel frame adjusts laterally to allow precise positioning of commercial truck, earthmoving, agricultural & tractor tyres along with the wheel rollers for further control.
Supports heavy commercial rims and tyres up to 1200kg
Rolls easily on four quality steel bearing castors
Includes heavy duty support arm to keep load secure
Integrated locking pin secures the dolly to relieve hydraulic pressure under load
Lead-free paint is applied to ensure a long-lasting finish and prevent corrosion
Paint finish is oil, grease and dirt-resistant for easy cleanup

Specifications

Safe Working Capacity: 1200kg
Min. Tyre Diameter: 1000mm
Max. Tyre Diameter: 2000mm
Lifting Range: 0 - 750mm
Roller Length: 490mm
Crate Dimensions: 1370(L) x 1040(W) x 250(H)mm
Weight: 125kg

Intended Use

Designed to facilitate the removal and installation of pneumatic tyres and wheel assemblies on earth movers, trucks, buses, agricultural machinery and trailers up to 1200kg & 2000mm diameter.

Print version Owners Manual Product Guide Bleeding Instructions Product Information Tips

About the Borum brand

Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for more than 40 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving superior professional standards, reliability, quality, and are covered by a 12 month trade use warranty.
