Engine Stands & Supports

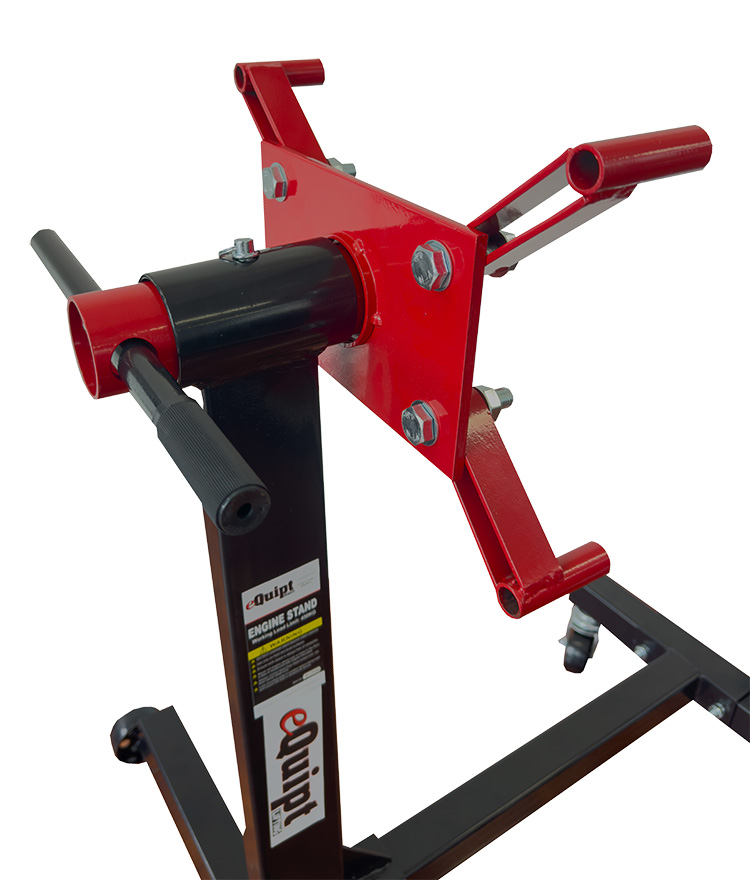

eQuipt "Designed to Deliver" 450kg Engine Stand has a 4-leg design featuring a rugged frame with a 4-hole mounting head that rotates 360°, making the unit ideal for 4 cylinder engines. When you've got an engine repair job that can’t be completed while the engine block is in the vehicle, this engine stand provides a sturdy support structure to secure the removed engine in mid-air, so you can access any part of it. Use an engine crane to remove the engine from the vehicle, then mount it to the faceplate on this engine stand.  (Previous models include product code/s; 1006, RLES450, TQES450)

Features

• Rugged tubular steel frame with attractive durable finish

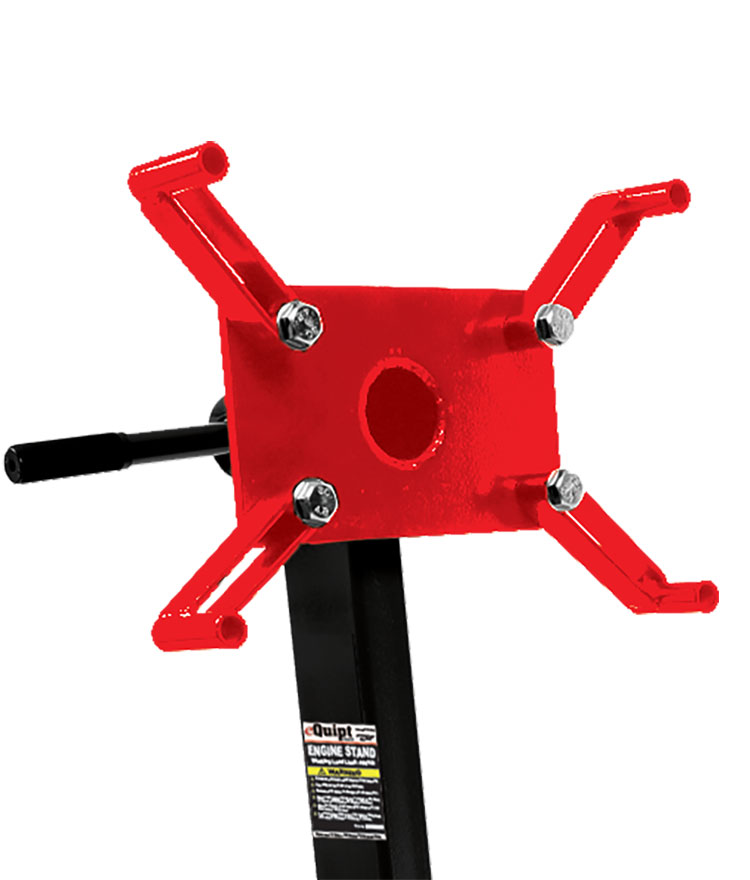

• 360 degree rotating head that locks in 8 positions
• Slotted mounting head for full adjustment
• Extra wide base for stability and safety
• Easy knockdown and quick assembly design for storing and transporting

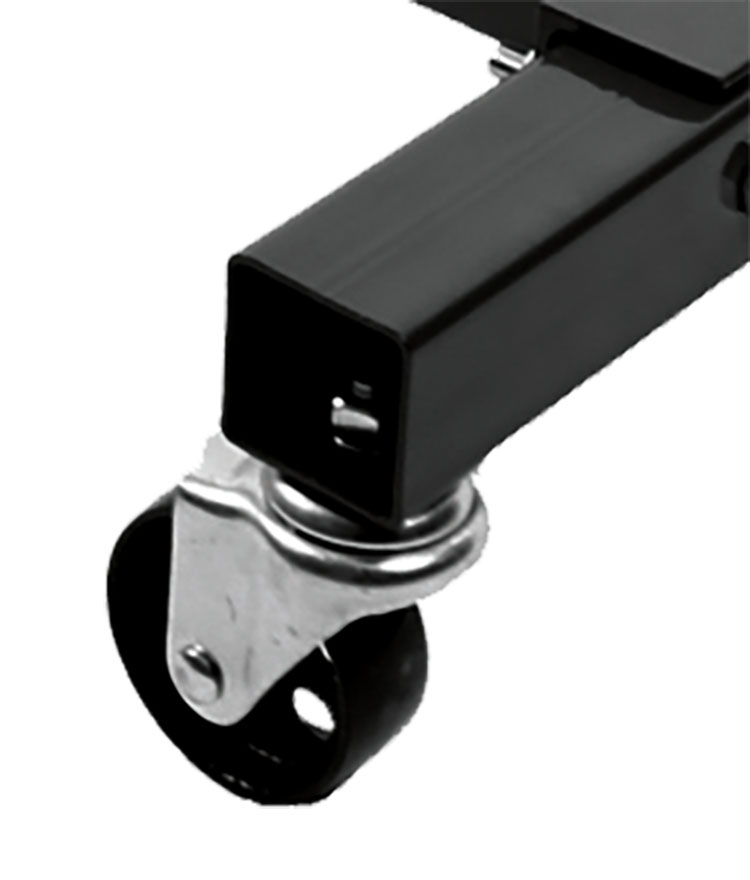

• Large diameter wheels and castors for smooth manoeuvring
• Suitable for cast iron/alloy block engines up to 4 cylinder engines

Specifications

• Safe Working Capacity: 450kg
• Centre Height: 780mm
• Width @fixed wheels: 750mm
• Width @swivel castors: 400mm
• Dimensions: 760(L) x 750(W) x 860(H) mm
• Weight: 21kg
• Carton: 910 x 210 x 180mm

Intended Use

For safe handling and positioning of passenger car engines up to 4 cylinder during dismantling and re-assembly.
