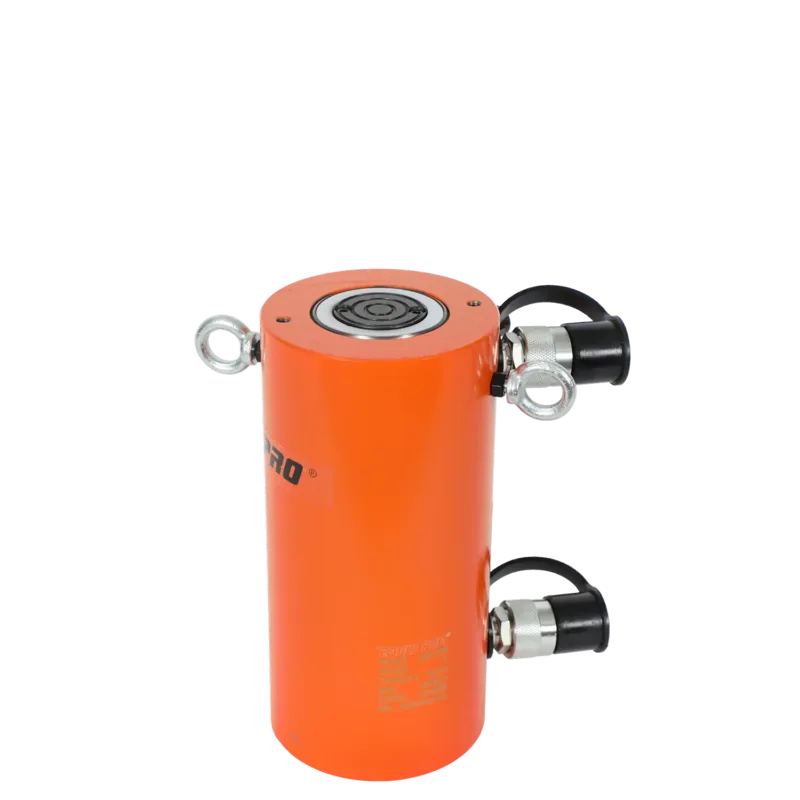

Eagle Pro 50T Double Acting Ram – 150mm Stroke
A 50-tonne double-acting hydraulic ram with a 150mm stroke and fast powered return, for heavy industrial spreading, clamping, pushing and lifting. Precision-machined alloy steel body with a corrosion-resistant finish.
- Heavy-capacity double-acting power
- Built-in safety valve prevents over-pressurisation
- Eyebolts included for easy handling
- Hardened, chrome-plated piston
Description
The Eagle Pro EDX series maximises durability through its high-strength alloy steel construction. A built-in safety valve prevents accidental over-pressurisation, and the included eyebolts make the cylinder easy to carry and position. Optional tilt saddles are also available.
The hardened and chromed piston minimises wear and corrosion damage, while base mounting holes enable easy fixturing. An environmentally friendly coating process provides a highly durable finish.
The EDX series comes with rugged EAB-201A female couplers, complete with heavy-duty dust covers that prevent dirt and debris from entering the hydraulic system.
Features
- Hardened alloy-steel guide ring prevents over-travel and reduces wear from off-centre loads
- Automatic safety valve prevents over-pressurisation
- Hardened, chromed piston resists wear and corrosion
- Precision-machined high-strength alloy-steel body with a baked-enamel finish for durability and corrosion protection
- High-strength composite bearings support off-centre loads without scoring the cylinder walls
- Industrial-grade seal design prevents costly leaks
- Includes a standard coupler with dust cover
Specifications
| Cylinder Capacity @ 10,000 PSI | 50t |
|---|---|
| Stroke | 150mm |
| Max. Capacity (Advance) | 53t |
| Max. Capacity (Retract) | 26t |
| Effective Area (Advance) | 75.4 cm² |
| Effective Area (Retract) | 36.9 cm² |
| Oil Capacity (Advance) | 1131 cm³ |
| Oil Capacity (Retract) | 1131 cm³ |
| Collapsed Height (A) | 262mm |
| Extended Height (B) | 412mm |
| Outside Diameter (D) | 129mm |
| Piston Diameter (F) | 70mm |
| Base Bolt Circle (U) | 65mm |
| Base Mounting Thread (V) | 2 x M12 |
| Base Thread Depth (Z) | 12mm |
| Weight | 22kg |
| Warranty | 12 months (trade use) |
Intended Use
For industrial & fast paced heavy-duty applications where the convenience of hydraulic power can be utilised for spreading, clamping, pushing and lifting in power, gas & steel plants, refinery shutdown and civil construction, ship building, agricultural and transport equipment & mining applications.
